Customizable design templates, die lines for thick wall tray and cover boxes with inserts

Dieline/template of thick wall  tray and cover box with insert
mockup of thick wall tray and cover box with insert

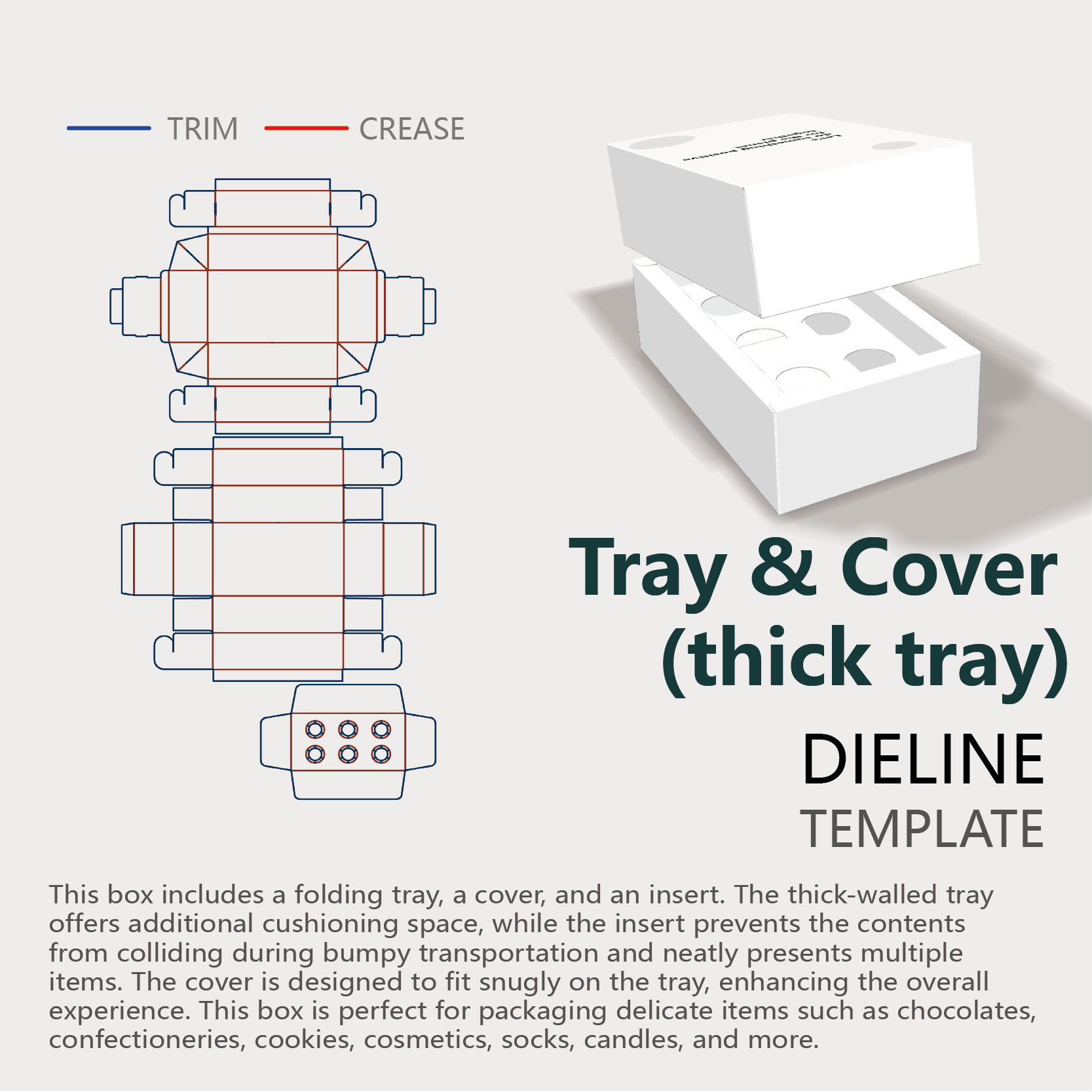

templates instruction of thick wall  tray and cover box with insert

You will get:

  • HD deline in DXF format, which can be printed freely and further edited with Adobe Illustrator or CAD.

Why cefBox?

  • Make your professional dielines in seconds.
  • All dielines are customizable online.
  • All templates are designed and re-examined by experts and are print ready.
  • Unlimited amounts of dieline customization and downloads.
  • Friendly Customer Service Support.
  • It's Free for downloading!


This particular box style has three main components, each serving a specific purpose. The first component is a foldable, thick-wall tray designed to offer additional cushioning, ensuring the safe transportation of items. The second component is a foldable cover, which securely encloses the tray, providing protection and containment. Lastly, the third component is an insert that can be used to divide the space within the box into multiple compartments, thereby optimizing space utilization and organization.
Output Size Mode
Custom Size
Material Thickness
E-flute paper
Download Formats
